Dust Collector

WDC-90,150

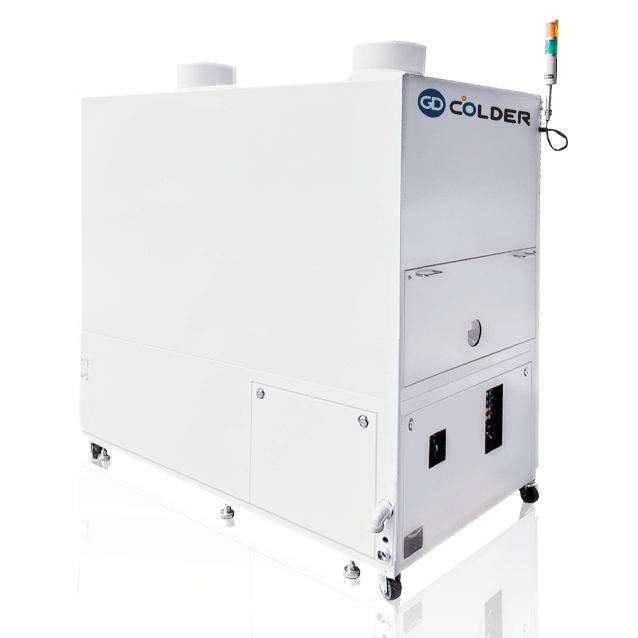

Dust Collector WDC-90,150

Dust Collector

WDC-90,150

Large dust collecting volume, simple operation and easy maintenance. Water washing, best washing effect. Special circuit design, increasing 30% dust collecting volume more than dry mode.

Temp. Range 5~38°C
Humidity Range 40~80%
E-Catalog Add Inquiry

We Solve the Problem for Extra Heat from the Machine.

A Dust Collector For You

Industrial Solutions For Cooling And Thermoregulation

  • Large dust collecting volume, simple operation and easy maintenance.
  • Water washing, best washing effect.
  • Special circuit design, increasing 30% dust collecting volume more than dry mode.
  • Without semi-obstruction problem incurred in dry mode.
  • High efficiency vapor remove design without outflow.
  • Low noise, stable operation and satisfying environmental requirements.
  • Unique feet wheel and shoke prevention design, which is easy for moving and installation.
Dust Collector

Model / Specification

WDC-90 WDC-150 WDC-200
Machine Model WDC-90
Location Indoor
Ambient temperature 5°C~38°C
Humidity range 40%~80%
Power 3 P 220/380V-50/60Hz
Dust removal liquid Tap water
Water sprinkling volume L/min 150
Water Consumption Kg/h 9
Water storage volume L 260
Airflow m3/min 42
Static pressure mmaq 185
Blower HP 3HP
Pump HP 1HP
Blower Kw 2.3
Pump Kw 0.4
Total power consumption Kw 2.7
Remote control power DC24V
Contact of remote control Nvg
Power circuit No fuse breaker, Phase control, Overloading protection
Auto water-filling valve 3/4"
Drain valve 1"
Vent pipe 6"/8"
Dimension LxWxH mm 1340x860x1960
Color Black / White
Weight kg 430

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.

Machine Model WDC-150
Location Indoor
Ambient temperature 5°C~38°C
Humidity range 40%~80%
Power 3 P 220/380V-50/60Hz
Dust removal liquid Tap water
Water sprinkling volume L/min 300
Water Consumption Kg/h 15
Water storage volume L 450
Airflow m3/min 80
Static pressure mmaq 234
Blower HP 7.5HP
Pump HP 2HP
Blower Kw 5.5
Pump Kw 1.5
Total power consumption Kw 7
Remote control power DC24V
Contact of remote control Nvg
Power circuit No fuse breaker, Phase control, Overloading protection
Auto water-filling valve 3/4"
Drain valve 1"
Vent pipe 10"/12"
Dimension LxWxH mm 1760x1050x1960
Color Black / White
Weight kg 580

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.

Machine Model WDC-200
Location Indoor
Ambient temperature 5°C~38°C
Humidity range 40%~80%
Power 3 P 220/380V-50/60Hz
Dust removal liquid Tap water
Water sprinkling volume L/min 300
Water Consumption Kg/h 15
Water storage volume L 450
Airflow m3/min 120
Static pressure mmaq 272
Blower HP 10HP
Pump HP 2HP
Blower Kw 9
Pump Kw 1.5
Total power consumption Kw 11.25
Remote control power DC24V
Contact of remote control Nvg
Power circuit No fuse breaker, Phase control, Overloading protection
Auto water-filling valve 3/4"
Drain valve 1 1⁄4"
Vent pipe 12"
Dimension LxWxH mm 1760x1050x1960
Color Black / White
Weight kg 670

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.
