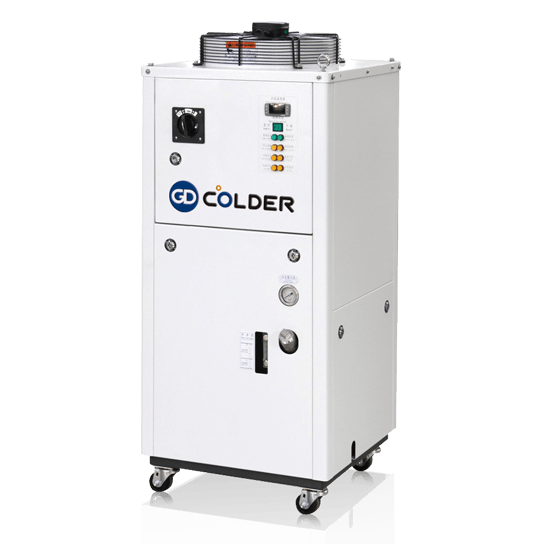

Air cooled chiller

AT-24,36

Air-cooled engines rely on the circulation of air directly over heat dissipation fins or hot areas of the engine to cool them in order to keep the engine within operating temperatures.
High inductive electronic temp, control switch and water pump. (accuracy±1℃). S.S plank type heat exchanger, Significantly promote the cooling efficiency, can save 20% energy.

Temp. Range	5~40°C (Indoor)
Humidity Range	40~80%
Cooling Capacity	5.6~10.5 KW

E-Catalog Add Inquiry

We Solve the Problem for Extra Heat from the Machine.

An Air Cooled Chillers For You

Industrial Solutions For Cooling And Thermoregulation

Features
Description
Appliations

High inductive electronic temp, control switch and water pump. (accuracy±1℃)
S.S plank type heat exchanger, Significantly promote the cooling efficiency, can save 20% energy.
International well-known brand compressor and pump, high E.E.R.
Microprocessor control panel and various indictors.
Multiple security protected device, postponed and automatic return home circulated function.
The cold storage trough can store surplus energy according to the demand.
With open-type S.S. water tank, easy clean & maintain.
Perfect anti-shock device and feet wheel design.
No need cooling water tower.

Use environmentally-friendly refrigerant R407C.
Use water for cooling liquid.
The water piping system includes high pressure rubber tube and stainless steel piping.
The electrical protection system includes no fuse magnetic switch, water level, against / lack phase, ultra-temp, and overload protection.
The remote control is AC220V and DC24V.
The color of machine is beige.

The plastic hollow molding/plastics runner film roller cooling.
Plastic injection and punching molding cooling.
All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
Laser cutting & marking machine.
Semiconductor and electron Instruments, ultrasonic cleaning equipment.
All kind of machine processes liquid cooling.

Air Cooled Chillers

Model / Specification

AT-24B AT-36B

Model		AT-24B
Temp. range		5~40°C(Indoor)
Humidity range		40~80%
Power		3 phase 220 / 380V 50 / 60Hz
Export temp		8~30°C ± 1°C
Compressor(HP)		2
Cooling capacity 50/60Hz	Kcal-h	4,800/6,000
	BTU-h	19,200/24,000
	kw-h	5.6/7.0
Pump(HP)	50/60Hz	0.9/1.2
Water pressure	Kg	2.8/3.2
Water flow	L/min	40/45
Cold-water inlet/outlet		3/4"
Remote control		AC220V、DC 24V
Color		White
Dimension LxWxH	mm	600x600x1,401
Water tank	L	56
Weight	kg	175

We reserve the right that modification designs and technique parameter change and will not notice specially.

Model		AT-36B
Temp. range		5~40°C(Indoor)
Humidity range		40~80%
Power		3 phase 220 / 380V 50 / 60Hz
Export temp		8~30°C ± 1°C
Compressor(HP)		3
Cooling capacity 50/60Hz	Kcal-h	7,200/9,000
	BTU-h	28,800/36,000
	kw-h	8.4/10.5
Pump(HP)	50/60Hz	1/1.5
Water pressure	Kg	2.5/3.8
Water flow	L/min	40/45
Cold-water inlet/outlet		1"
Remote control		AC220V、DC 24V
Color		White
Dimension LxWxH	mm	800x750x1,525
Water tank	L	85
Weight	kg	225

We reserve the right that modification designs and technique parameter change and will not notice specially.
