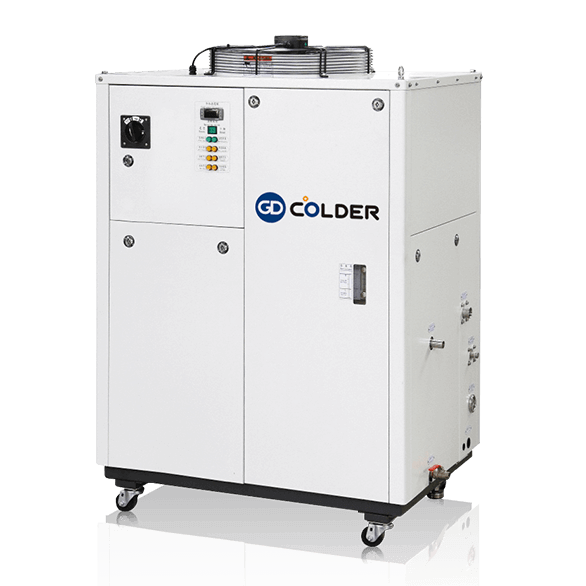

Air cooled chiller AT-90,120

Air cooled chiller

AT-90,120

Air-cooled engines rely on the circulation of air directly over heat dissipation fins or hot areas of the engine to cool them in order to keep the engine within operating temperatures.
High inductive electronic temp, control switch and water pump. (accuracy±1℃). S.S plank type heat exchanger, Significantly promote the cooling efficiency, can save 20% energy.

Air Cooled Chillers
Temp. Range 5~40°C (Indoor)
Humidity Range 40~80%
Cooling Capacity 20.9~34.9 KW

We Solve the Problem for Extra Heat from the Machine.

An Air Cooled Chillers For You

Industrial Solutions For Cooling And Thermoregulation

  • High inductive electronic temp, control switch and water pump. (accuracy±1℃)
  • S.S plank type heat exchanger, Significantly promote the cooling efficiency, can save 20% energy.
  • International well-known brand compressor and pump, high E.E.R.
  • Microprocessor control panel and various indictors.
  • Multiple security protected device, postponed and automatic return home circulated function.
  • The cold storage trough can store surplus energy according to the demand.
  • With open-type S.S. water tank, easy clean & maintain.
  • Perfect anti-shock device and feet wheel design.
    No need cooling water tower.
  • Use environmentally-friendly refrigerant R407C.
  • Use water for cooling liquid.
  • The water piping system includes high pressure rubber tube and stainless steel piping.
  • The electrical protection system includes no fuse magnetic switch, water level, against / lack phase, ultra-temp, and overload protection.
  • The remote control is AC220V and DC24V.
  • The color of machine is beige.
  • The plastic hollow molding/plastics runner film roller cooling.
  • Plastic injection and punching molding cooling.
  • All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
  • Laser cutting & marking machine.
  • Semiconductor and electron Instruments, ultrasonic cleaning equipment.
  • All kind of machine processes liquid cooling.
Air Cooled Chillers

Model / Specification

Model AT-90B
Temp. range 5~40°C(Indoor )
Humidity range 40~80%
Power 3 phase 220 / 380V 50 / 60Hz
Export temp 8~30°C ± 1°C
Compressor(HP) 7.5
Cooling capacity
50/60Hz
Kcal-h 18,000/22,500
BTU-h 72,000/90,000
kw-h 20.9/26.2
Pump(HP) 50/60Hz 1/1.7
Water pressure Kg 1.8/2.5
Water flow L/min 90
Cold-water inlet/outlet 1"
Remote control AC220V、DC 24V
Color White
Dimension LxWxH mm 1,300x861x1,985
Water tank L 280
Weight kg 450

We reserve the right that modification designs and technique parameter change and will not notice specially.

Model AT-120B
Temp. range 5~40°C(Indoor )
Humidity range 40~80%
Power 3 phase 220 / 380V 50 / 60Hz
Export temp 8~30°C ± 1°C
Compressor(HP) 10
Cooling capacity
50/60Hz
Kcal-h 24,000/30,000
BTU-h 96,000/120,000
kw-h 27.9/34.9
Pump(HP) 50/60Hz 1.5/2
Water pressure Kg 2.5
Water flow L/min 150
Cold-water inlet/outlet 1 1/4"
Remote control AC220V、DC 24V
Color White
Dimension LxWxH mm 1,300x861x1,985
Water tank L 280
Weight kg 525

We reserve the right that modification designs and technique parameter change and will not notice specially.
