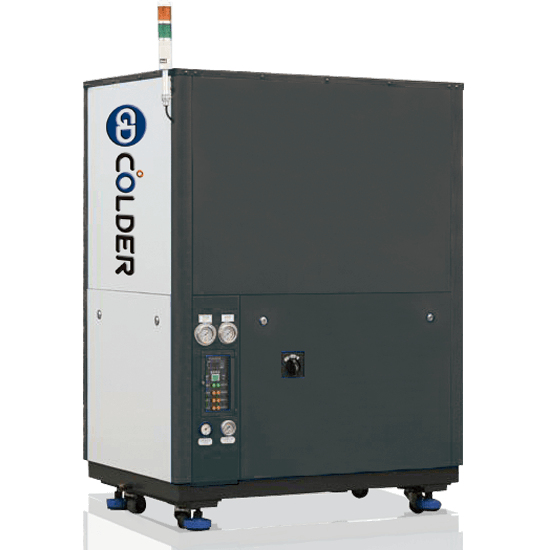

Water cooled chiller WT-120,180

Water cooled chiller

WT-120,180

High inductive temperature control switch, easy control the manufacturing process liquid temperature. (accuracy ±0.5 ℃)

Water cooled chiller
Temp. Range 5~40°C
Humidity Range 40~80%
Cooling Capacity 28~52 KW

We Solve the Problem for Extra Heat from the Machine.

A Water-Cooled Chiller For You

Industrial Solutions For Cooling And Thermoregulation

  • High inductive temperature control switch, easy control the manufacturing process liquid temperature. (accuracy ±0.5 ℃)
  • With Euro-well-known brand compressor and water pump, low noise, high E.E.R
  • Casing pipe type condenser and stainless steel plank type heat exchanger. Significantly promote the cooling efficiency.
  • The cold storage trough can store surplus energy according to the demand. Can save 20% energy.
  • Microprocessor control panel and auto-detect indicate lamp.
  • With perfect and multiple security protected device, postponed and automatic return home circulated function.
  • Stainless Steel water tank and water circulating system design.
  • Can set water supply by manual or automatic method.
  • With perfect anti-shock device and feet wheel design, easy to move.
  • Must collocate with cooling water tower.
  • Use environmentally-friendly refrigerant R407C.
  • Use water for cooling liquid.
  • The water piping system includes high pressure rubber tube and stainless steel piping.
  • The electrical protection system includes no fuse magnetic switch, water level, against / lack phase, ultra-temp, and overload protection.
  • The remote control is AC220V and DC24V.
  • The color of machine is gray and white.
  • The plastic hollow molding/ plastics runner film roller cooling
  • Plastic injection and punching molding cooling.
  • All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
  • Laser cutting & marking machine.
  • Semiconductor and electron Instruments, ultrasonic cleaning equipment.
  • All kind of machine processes liquid cooling.
Water cooled chiller

Model / Specification

Model WT-120B
Temp. range 5~40°C(Indoor )
Humidity range 40~80%
Power 3P –220/380V –50/60Hz
Coolant R407
Cooling liquid Industrial Pure Water
Export temp 8~30°C ± 1°C
Cooling capacity
50/60Hz
Kcal-h 24,000/30,000
BTU-h 96,000/120,000
kw 28/35
Pump 50/60Hz HP 1.5 / 2
Water flow L/min 150
Water pressure Kg 2.5
Water piping High pressure rubber tube, Stainless steel piping
Protection system No fuse magnetic switch, water level, against/lack phase, ultra-temp., overload protection
Compressor HP 10
Cold-water inlet/outlet 1½"
Remote control AC220V、DC24V
Color Black+White
Dimension LxWxH mm 1,150 x 700 x 1,750
Water tank L 300
Weight kg 550

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.

Model WT-180B
Temp. range 5~40°C(Indoor )
Humidity range 40~80%
Power 3P –220/380V –50/60Hz
Coolant R407
Cooling liquid Industrial Pure Water
Export temp 8~30°C ± 1°C
Cooling capacity
50/60Hz
Kcal-h 36,000/45,000
BTU-h 144,000/180,000
kw 42/52
Pump 50/60Hz HP 2.5 / 3.0
Water flow L/min 180
Water pressure Kg 2.5
Water piping High pressure rubber tube, Stainless steel piping
Protection system No fuse magnetic switch, water level, against/lack phase, ultra-temp., overload protection
Compressor HP 13.5
Cold-water inlet/outlet 1½"
Remote control AC220V、DC24V
Color Black+White
Dimension LxWxH mm 1,300 x 850 x 1,770
Water tank L 300
Weight kg 580

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.
