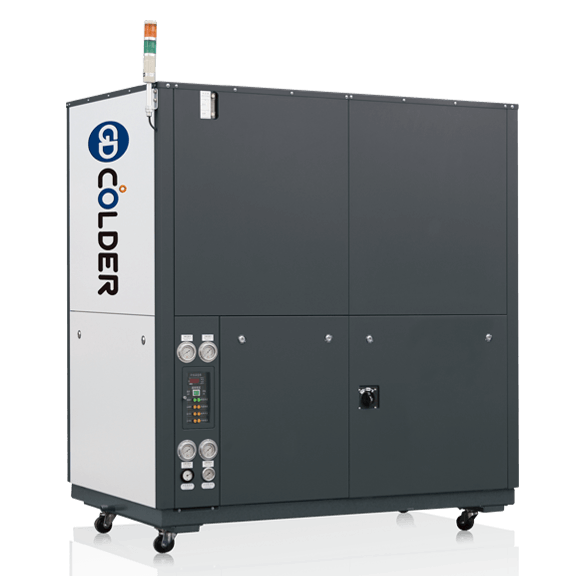

Water cooled chiller

Name: Water cooled chiller-GIN-DAI PRECISION TECHNOLOGY CO., LTD. | Cooling System
Brand: GIN-DAI PRECISION TECHNOLOGY CO., LTD. | Cooling System

WT-240,300,360

High inductive temperature control switch, easy control the manufacturing process liquid temperature. (accuracy ±0.5 ℃)

Temp. Range	5~40°C
Humidity Range	40~80%
Cooling Capacity	56~105 KW

E-Catalog Add Inquiry

We Solve the Problem for Extra Heat from the Machine.

A Water-Cooled Chiller For You

Industrial Solutions For Cooling And Thermoregulation

Features
Description
Appliations

High inductive temperature control switch, easy control the manufacturing process liquid temperature. (accuracy ±0.5 ℃)
With Euro-well-known brand compressor and water pump, low noise, high E.E.R
Casing pipe type condenser and stainless steel plank type heat exchanger. Significantly promote the cooling efficiency.
The cold storage trough can store surplus energy according to the demand. Can save 20% energy.
Microprocessor control panel and auto-detect indicate lamp.
With perfect and multiple security protected device, postponed and automatic return home circulated function.
Stainless Steel water tank and water circulating system design.
Can set water supply by manual or automatic method.
With perfect anti-shock device and feet wheel design, easy to move.
Must collocate with cooling water tower.

Use environmentally-friendly refrigerant R407C.
Use water for cooling liquid.
The water piping system includes high pressure rubber tube and stainless steel piping.
The electrical protection system includes no fuse magnetic switch, water level, against / lack phase, ultra-temp, and overload protection.
The remote control is AC220V and DC24V.
The color of machine is gray and white.

The plastic hollow molding/ plastics runner film roller cooling
Plastic injection and punching molding cooling.
All kind microprocessor control machine tools, grinders, machine centers and combined lathe of the principal axis lubrication and hydraulic system cooling.
Laser cutting & marking machine.
Semiconductor and electron Instruments, ultrasonic cleaning equipment.
All kind of machine processes liquid cooling.

Water cooled chiller

Model / Specification

WT-240B WT-300B WT-360B

Model		WT-240B
Temp. range		5~40°C(Indoor )
Humidity range		40~80%
Power		3P –220/380V –50/60Hz
Coolant		R407
Cooling liquid		Industrial Pure Water
Export temp		8~30°C ± 1°C
Cooling capacity 50/60Hz	Kcal-h	48,000/60,000
	BTU-h	192,000/240,000
	kw	56/70
Pump 50/60Hz	HP	3.5 / 5.0
Water flow	L/min	380
Water pressure	Kg	2.5
Water piping		High pressure rubber tube, Stainless steel piping
Protection system		No fuse magnetic switch, water level, against/lack phase, ultra-temp., overload protection
Compressor	HP	20
Cold-water inlet/outlet		2”
Remote control		AC220V、DC24V
Color		Black+White
Dimension LxWxH	mm	1,770 x 1,050 x 1,940
Water tank	L	600
Weight	kg	960

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.

Model		WT-300B
Temp. range		5~40°C(Indoor)
Humidity range		40~80%
Power		3P –220/380V –50/60Hz
Coolant		R407
Cooling liquid		Industrial Pure Water
Export temp		8~30°C ± 1°C
Cooling capacity 50/60Hz	Kcal-h	60,000/75,000
	BTU-h	240,000/300,000
	kw	70/87
Pump 50/60Hz	HP	5.5
Water flow	L/min	380
Water pressure	Kg	2.5 / 3.0
Water piping		High pressure rubber tube, Stainless steel piping
Protection system		No fuse magnetic switch, water level, against/lack phase, ultra-temp., overload protection
Compressor	HP	25
Cold-water inlet/outlet		2”
Remote control		AC220V、DC24V
Color		Black+ White
Dimension LxWxH	mm	1,770 x 1,050 x 1,940
Water tank	L	750
Weight	kg	1,050

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.

Model		WT-360B
Temp. range		5~40°C(Indoor)
Humidity range		40~80%
Power		3P –220/380V –50/60Hz
Coolant		R407
Cooling liquid		Industrial Pure Water
Export temp		8~30°C ± 1°C
Cooling capacity 50/60Hz	Kcal-h	72,000/90,000
	BTU-h	288,000/360,000
	kw	84/105
Pump 50/60Hz	HP	5.5 / 8.0
Water flow	L/min	430
Water pressure	Kg	2.5 / 3.5
Water piping		High pressure rubber tube, Stainless steel piping
Protection system		No fuse magnetic switch, water level, against/lack phase, ultra-temp., overload protection
Compressor	HP	30
Cold-water inlet/outlet		2”
Remote control		AC220V、DC24V
Color		Black+White
Dimension LxWxH	mm	1,770 x 1,050 x 1,940
Water tank	L	750
Weight	kg	1,320

Also have the AT-A2, AT-AL, AT-AL2 system further for your choice.
We reserve the right that modification designs and technique parameter change and will not notice specially.
